Sitoo - Voyado Docs

Introduction

Sitoo is a cloud-native mobile point of sale (mPOS) and omnichannel platform for global retailers, empowering retailers to sell everywhere and fulfil anywhere.

An open REST API enables Sitoo’s real-time data to be shared across all retail systems. The cloud-native mPOS platform is scalable, built for high transaction volumes, and also has an offline mode. It’s used by retailers in Europe, EMEA, Asia-Pacific and across North America. Sitoo has a native integration with Voyado Engage, enabling you to:

Register your customers in Sitoo and sync them to Engage in real-time
Identify customers directly in Sitoo, regardless if they were registered in store or online.
Sync purchases and returns from Sitoo to Engage
Assign personal discounts based on segments in Engage connected to campaigns in Sitoo.
Reward customers with vouchers generated in Engage and enable them in Sitoo.
Enable self check-out and let customers identify themselves and redeem their offers and vouchers.
Build offline campaigns with labels assigned through the marketing automation platform in Engage.

Here’s how to use the Engage integration with Sitoo.

Requirements

An active Engage CXP and Omni license
An active Sitoo license

Configuration in Engage

Here is what your Engage team needs to do:

In the client’s tenant, create an API-key user for the Sitoo integration.
Send the API key and the tenant’s base URL for API access to Sitoo.
If the client has stores in the US, enable the feature toggle “SkipReceiptTotalGrossPriceValidation“ since the US uses a sales tax applied to the totalGrossPrice and not to each line item.
If the store is not in a country using the defined group currency, then the currency needs to be retrieved using an exchange rate. This needs to be set up in Engage using a fixed exchange rate.

Configuration in Sitoo

The API docs for Sitoo can be found here:

See the Sitoo API docs

An Engage integration is configured in Sitoo using YAML. Using this, you can choose which attributes to use for searching and which to use for for creating, editing and displaying in the POS. The YAML-configuration is located in Sitoo under Settings / General / POS Settings / Advanced Settings. This will open up the window where you enter your YAML, which will look something like this:

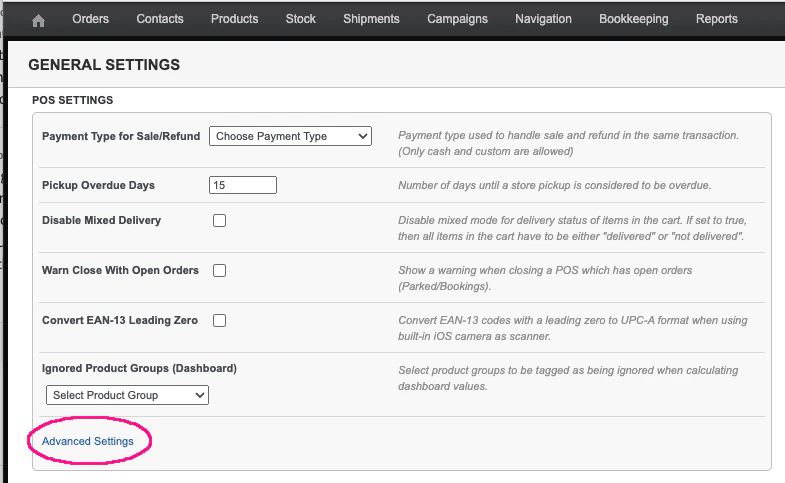

Screenshot of Sitoo general settings with advanced settings link highlighted

Here’s how to configure each section in the YAML.

Connection and country settings

Under handler in the YAML is where you set base URL, API key and the country settings:

  ...
  handler:
    voyado:
      api_url: 'https://example.voyado.com/api/'
      api_key: 2b5f1234-12c4-4e20-a3d0-0749a51862aa
      locale: en-GB
      currency_code: EUR
  ...

Attributes used to search for contacts

Under search_types and client_settings you’ll define the attributes used to search for a contact in Engage:

  ...
  client_settings:
    search_types:
      - mobile
      - email
      - personal_id
      - member_number
  ...

Contact lookup (Dun & Bradstreet)

Here you can configure the personal attribute used to enrich your contact’s profiles through a vendor like Dun & Bradstreet. Under “client_settings” you can define lookup_type as either “personal_id” (for their personal identity number) or “mobile” (for their mobile number):

  ...
  client_settings:
    lookup_type: personal_id
  ...

Attributes for creating contacts

In the client_settings section under fields_add is where you add the fields from Engage that will be accessible in Sitoo when adding a contact. These can either be “editable” or “readonly”.

  ...
  fields_add:
        email: editable
        name: editable
        personal_id: editable
        mobile: editable
        invoice_address: editable
        accepts_email: editable
        accepts_sms: editable
        accepts_mail: editable
        consents: editable
  ...

If consents is set to “editable” then all consents will be visible in the POS when adding a contact.

Attributes for editing contacts

These are the attributes available in the POS when updating an already existing contact. These are added to the client_settings section under fields_edit. The attributes that you want to be editable are listed as “editable”. If they are not to be editable, make them “readonly”.

  ...
    fields_edit:
      email: editable
      name: editable
      personal_id: editable
      mobile: editable
      invoice_address: editable
      accepts_email: editable
      accepts_sms: readonly
      accepts_mail: readonly
      consents: readonly
  ...

Custom attributes

Under sections you can choose which custom attributes to display in the POS. You can add different subject lines and then the attributes connected to that subject line.

Attributes of type “array” cannot be displayed in the POS.

Here, attribute is the field name in Engage and title is the text displayed in POS.

  ...
  sections:
    -
      title: 'Customer info'
      fields:
        -
          title: 'Regular store'
          attribute: currentStore.name
        -
          title: 'Customer number'
          attribute: memberNumber
        -
          title: 'Reward points'
          attribute: bonusPoints
        -
          title: Tier-level
          attribute: bonusBasedLevel
        -
          title: 'Points left for upgrade'
          attribute: bonusBasedLevelLeftForUpgrade
        -
          title: Age
          attribute: age
        -
          title: ZIP
          attribute: zipCode
          display_true: JA
        -
          title: 'Personal ID'
          attribute: socialSecurityNumber
        -
          title: C/O
          attribute: careOf
          display_false: Ingen
        -
          title: 'Finns ej'
          attribute: nullAttr
        -
          title: 'Secrecy marked'
          attribute: secrecyMarked
          display_false: 'Sekretess åberopad'
  ...

The display_false and display_true values contain the texts displayed if the field has data (display_true) or if it doesn’t (display_false).

Engage standard attributes are always editable in Sitoo, and the fields listed as editable in fields_edit are in addition to these. Engage custom attributes (meaning those that are not standard attributes) can be viewed in Sitoo but not edited.

Default discounts and vouchers

These are general member discounts which are applied in Sitoo when a contact is identified. The discounts and vouchers are created in Sitoo and do not have to be connected to a promotion in Engage.

  ...
  voucher_passwords_default:
    - pricelist_member_2021
    - spring_member
  ...

Discounts and vouchers connected to labels

These are discounts automatically applied when a contact with a certain label is identified. The voucher is created in Sitoo and in the configuration you can define which discount or voucher is triggered by which label.

  ...
  voucher_passwords_from_labels:
    -
      label_name: Staff
      voucher_passwords:
        - staffdiscount
  ...

Returning item purchased with voucher

If such an item is returned, the voucher used to buy it will not be automatically reactivated. This needs to be manually done in Engage.

Engage API endpoints

Sitoo needs to access several Engage API endpoints to allow this integration to work.

Retrieving a contact

Get contact's full data

GET v2/contactoverview

Get all labels for contact

GET v1/contacts/contactId/labels

The endpoint used to get a contact’s labels uses V1 of the API.

Creating / updating a contact

Creating a contact

POST v2/contacts

Updating a specific contact

POST v2/contacts/contactId

https://mintcdn.com/voyado-partners/0IxEIB2Y6a--gNYY/icons/developer-link.png?fit=max&auto=format&n=0IxEIB2Y6a--gNYY&q=85&s=36f1df27b0269657d842f3301d440083

Working with contacts in Engage API v2

Fetching consents

See all consents in Engage

GET v2/consents

See consents which are true for specific contact

GET v2/contactoverview

Fetching from Dun & Bradstreet

Get contact's enhanced data using personal identity number or mobile phone number

GET v2/personlookup/getpersonlookup

You’ll see an example of the response on your Swagger page.

Fetching transactions for a contact

Get transactions for a contact (results are paged)

GET v2/contacts/contactId/transactions

Creating a transaction

Add transaction using contactId as match key

POST v2/receipts

Redeeming a promotion

POST v2/contacts/contactId/posoffers/promotionId/redeem

Redeeming a reward voucher

Redeeming reward voucher

POST /api/v2/contacts/contactId/bonuschecks/rewardVoucherId/redeem

Bonus check is an older name for reward voucher in Engage.
